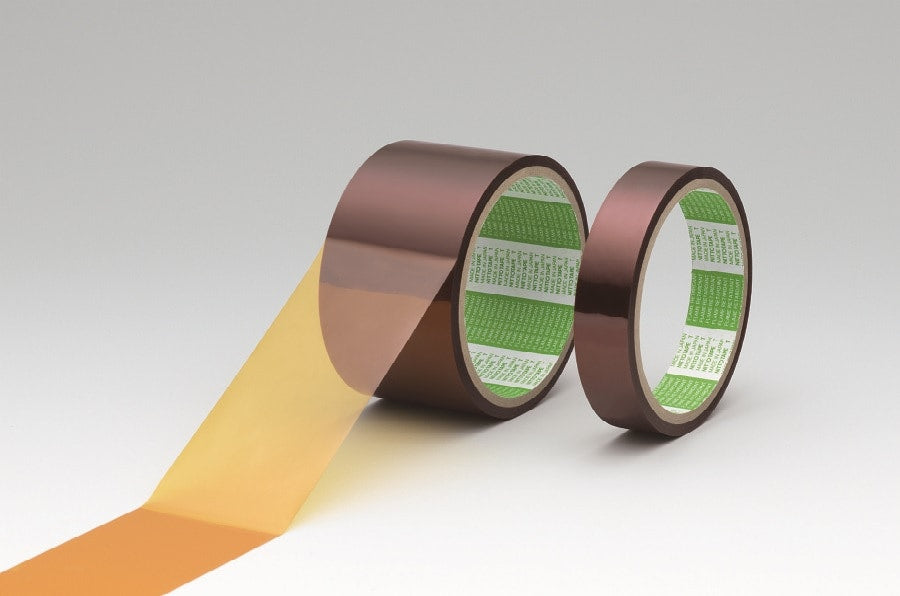

Polyimide Adhesive Tape for Heat-resistant Insulation No.360 Series
Description
Read More
Read Less
Widely used for heat-resistant electrical insulation of electrical/electronic equipments.
Tape with polyimide film backing with superior heat resistance. Widely used in a variety of applications, such as the insulation of electrodes in lithium ion secondary batteries and applications requiring heat resistant masking, such as in component mounting reflow processes and the manufacturing processes of various types of electronic components.
Features
- Offers superior electrical insulation properties.
- Offers superior dimension stability.
- Offers superior heat resistance.
- Narrow width processing is available.
- Available in long lengths.
Structure
Properties
| Product No. | No.360UL | No.360A | |||
| Thickness [mm] | Backing | 0.025 | 0.050 | 0.025 | 0.050 |
| Total | 0.060 | 0.090 | 0.050 | 0.078 | |
| Standard Length[m] | 20 | 20 | |||
| Color | Light Amber Brown | Light Amber Brown | |||
| Peeling strength [N/19mm] | 5.4 | 5.4 | 4.2 | 4.7 | |
| Tensile strength [N/19mm] | 145 | 250 | 156 | 273 | |
| Elongation [%] | 65 | 65 | 76 | 71 | |
| Breakdown voltage[kV] | 8.0 | 11.0 | 7.7 | 12.1 | |
| Electrolytic corrosion factor | 1.00 | 1.00 | |||
[Remarks]
The above values are sample observed values, not the guaranteed performance.
Applications
- Component-mounting reflow process.
- Heat-resistant masking.
- Secondary battery electrode insulation.
- Heat-resistant electrical insulation.
