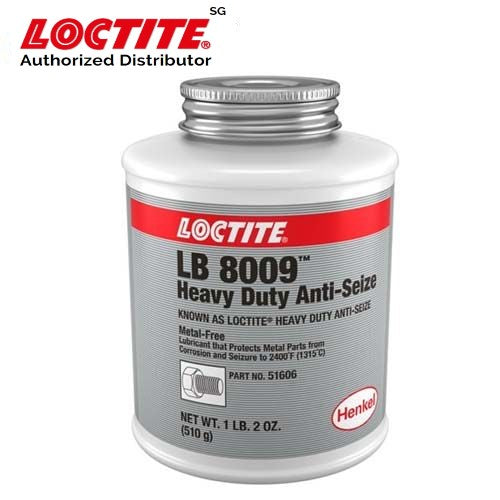

Loctite Lb8009 Metal Free H-d Brush Top Compound Anti-seize 510g
Loctite Lb8009 Metal Free H/d Brush Top Compound Anti-seize 510g
- Temperature Resistance : 2400 °F
- Key Substrates : Metal: Aluminum
- Color : Black
- Curing Type : Non-curing
- Application : Lubrication
LOCTITE® LB 8009 is a metal-free anti-seize lubricant with graphite and calcium fluoride in a brush top form. Provides outstanding lubrication to all metals including stainless steel, aluminum and soft metals. Resistant to extremely high temperatures up to +1,315°C. It has an NLGI Grade of 1.
- Resistant to very high temperatures up to +1,315°C
- Unique brush top
- It has an NLGI grade of 1
- Outstanding lubrication for all metals including stainless steel, aluminum and soft metals.
LB 8009 is a graphite/calcium fluoride formulation,
which is free from lead, copper, sulfur, and their compounds.
LB 8009 contains no free metals and is compatible
with stainless steel and other nickel alloys. Typical applications
of this product includes bolts, screws, studs, pipe joints, nuts,
plugs, bushings, extruding and forming dies, heat exchangers,
shear blades, metal bending, mechanical packings, etc. It is
used in chemical plants, oil refineries, power plants, paper
mills, steel mills and foundries, synthetic fiber plants, ship and
aerospace manufacturing and service, etc. This
product is typically used in applications with an operating
range of -29 °C to +1315 °C
An anti-seize lubricant used on a bolt helps to develop greater
clamp load for the same torque compared to an unlubricated
bolt. An additional benefit is greater uniformity in clamp load
among a series of bolts.
This product is not recommended for use in pure oxygen
and/or oxygen rich systems and should not be selected
with a sealant for chlorine or other strong oxidizing
For safe handling information on this product, consult the
Safety Data Sheet (SDS).
Directions for use
- For best performance the mating surface should be clean
and free of grease.
- Note: When grinding or wire brushing, use a dust
mask. Dust from cleaning threads may contain metal
compounds. Inhalation may cause lung injury or other
- Apply thin coating to mating surfaces, assemble.
- Do not use thinner.
Loctite Material Specification
LMS dated May-10, 2000. Test reports for each batch are
available for the indicated properties. LMS test reports include
selected QC test parameters considered appropriate to
specifications for customer use. Additionally, comprehensive
controls are in place to assure product quality and
consistency. Special customer specification requirements may
be coordinated through Henkel Quality.
Store product in the unopened container in a dry location.
Storage information may be indicated on the product container
Optimal Storage: 8 °C to 21 °C. Storage below 8 °C or
greater than 28 °C can adversely affect product properties.
Material removed from containers may be contaminated during
use. Do not return product to the original container. Henkel
Corporation cannot assume responsibility for product which
has been contaminated or stored under conditions other than
those previously indicated. If additional information is required,
please contact your local Technical Service Center or
Customer Service Representative.
