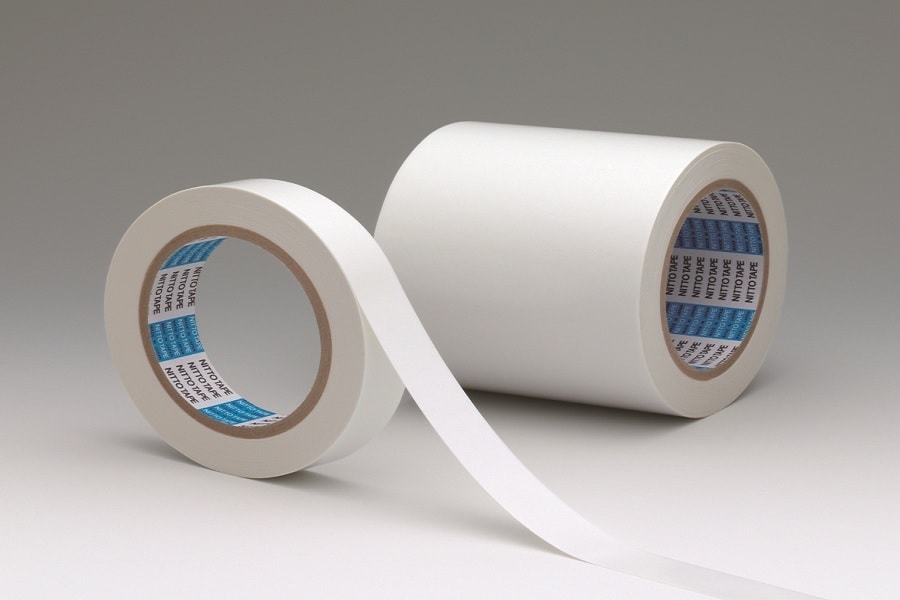

Double Sided Tape with Superior Thermal Conductive Property and Adhesion TR Series
Description
Read More
Read Less
TR series use a thermal conductive adhesive, providing remarkable conductivity.
Superior thermal conductivity by a low value of thermal resistance.
Features
- Low thermal resistance and superior thermal conductivity.
- Powerful adhesion for remarkable strength and reliability.
- Features excellent workability and processability.
- TR series (exclude TR-5310EX) features UL-94 V-0 flame retardancy.
(Halogen free) [File No.QMFZ2.E52859] - Does not contain the 10 substances restricted by RoHS Directive.
You can look the video of thermal conductive and flame retardancy property.
Structures
Properties
| Product No. | TR-5320F | TR-5325F | TR-5310EX |
|---|---|---|---|
| Thickness (mm) |
0.20 | 0.25 | 0.10 |
| Adhesive Strength [N/20mm] |
11.0 | 11.4 | 9.5 |
| Thermal Conductivity *1 [W/m·K] |
1.0 | 0.4 | |
| Thermal Resistance [cm2·K/W] |
3.2 | 3.5 | 3.6 |
| Flame Retardance [UL94] |
V-0 | - | |
| Carrire | PET#12 | ||
UL94 V0 flame retardancy acquired (halogen free) [File No.QMFZ2.E52859]
[Remarks]
- * Measured by peeling in a 180° direction at a speed of 300 mm/min at 23℃ with 0.025 mm PET lining.
- * These values are only examples of observed samples and not a guarantee of performance.
- *1 Laser flash method At 23°C
Applications
- For fixing LED base board and housing.
- For fixing CPU and heat sink or radiation fin.
- For fixing various types of semiconductor package and heat sink.
- For fixing electronic parts and heat sink.
