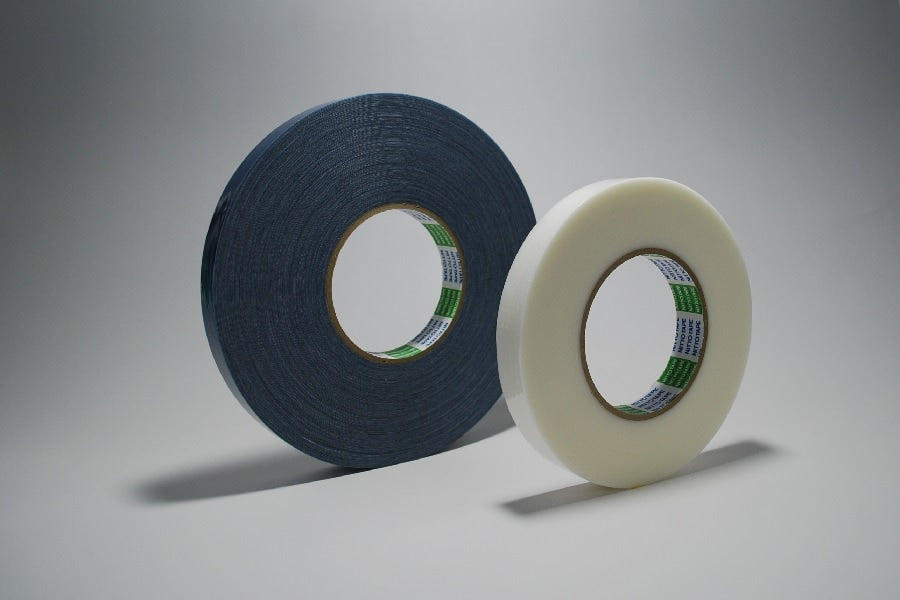

Special Polyester-Based Adhesive Tape With Excellent Impact Resistance No.340/No.341F
描述
阅读更多
少读
Provides high insulation properties with non-woven cloth.
High insulation adhesive tape with an acrylic adhesive applied to a composite substrate of non-woven cloth and polyester film. Optimum for banding the exterior of coils.
Features
- Superior flexibility and excellent for coils adhesion.
- Adhesion increases with heat treatment.
Structure
Properties
Product No. | No.340 | No.341F | |
Thickness[mm] | Total | 0.240 | 0.420 |
Substrate | 0.180 | 0.350 | |
Standard length[m] | 50 | 50 200 |
|
Color | White/Blue | White | |
Peeling strength[N/19mm] | 8.0 | 6.5 | |
Tensile strength[N/19mm] | 140 | 120 | |
Elongation[%] | 60 | 60 | |
Breakdown voltage[kV] | 5.5 | 5.5 | |
Electrical corrosion factor | Over 0.98 | Over 0.98 |
[Remarks]
- *The figures are a sample of observed values, not guaranteed performance.
Applications
- Outer insulation and terminanion of coils.
