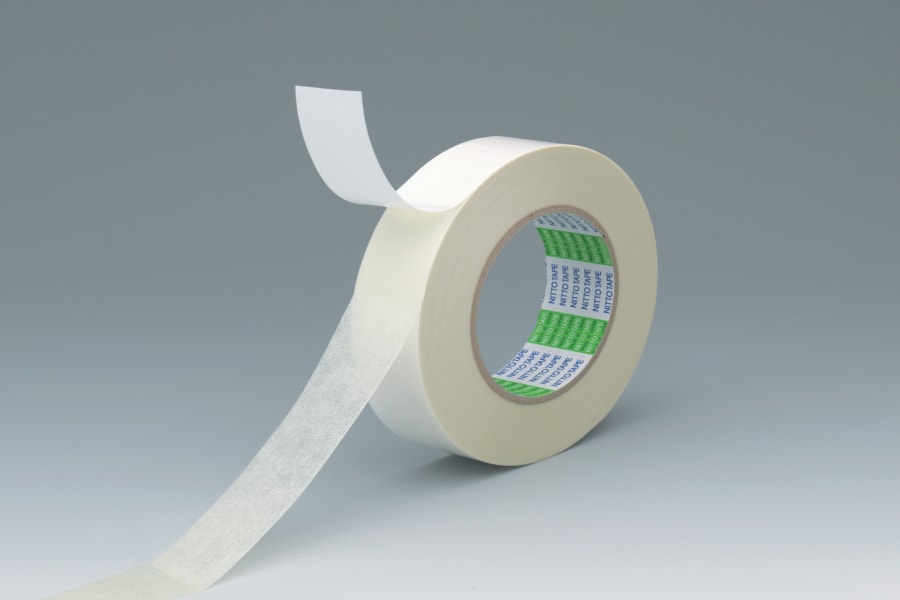

Re-peelable Strong Adhesive Double Sided Tape Using Thick Unwoven Fabric No.5000ND

Product catch-phrase This thick, double sided tape offers remarkable adhesive strength for a wide-range of substrates. It is reusable, and can even stick well to rough surfaces.

Features

• 5000ND offers excellent adhesion during light crimping, and rough surfaces.
• It can be used under a wide range of operating temperatures for various applications, with remarkable part fixing performance.
• Extra-strong, nonwoven fabric gives the tape remarkable tensile strength, with very little residue when reworked, and it does not tear easily.
• Does not contain the 10 substances restricted by RoHS Directive.

Structure

*Tape thickness excludes thickness of release liner.

Properties

Reworkability

Peel property determination

• ○ : Peels without tearing
• × : Tears when peeled

[Peel property test method] Lining material: 5mm thick foam Tape width: 3mm Curing conditions: 60℃/90% RHx15 days Tension speed: 300mm/min Peeling angle: 90°

Adhesive residue determination

○ : No adhesive residue
× : Lots of adhesive residue

[Adhesive residue test method] Lining material: PET#25 Tape width: 20mm Curing conditions: 60℃/90% RHx15 days Tension speed: 300mm/min Peeling angle: 180°

180° peeling strength - By substrate

(Unit: N/20mm)

Specimen: 20mm width Lining material: PET#25 Crimping method: reciprocating 2kg roller 1 cycle Crimping temp: 23℃/50%RH Curing conditions: 23℃/50%RH×30min Tension speed: 300mm/min Pulling angle: 180° Measurement temp: 23℃/50%RH

Applications

• For general adhesion to metal sheets, plastic sheets, urethane foam bodies, etc.
• For adhesion to office automation equipment, such as printers and copy machines, as well as urethane cushioning or sealing materials used in household appliances such as TVs and air conditioners.
