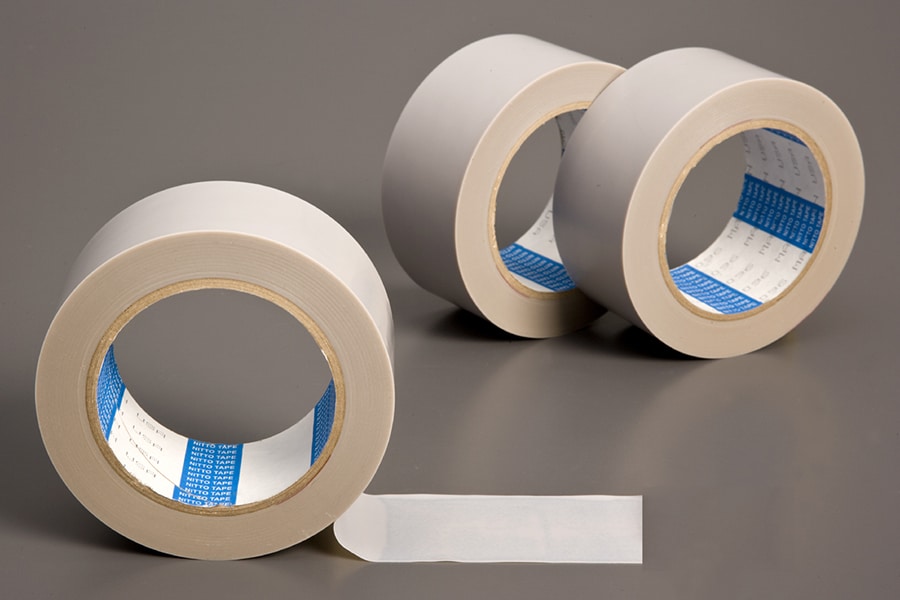

10-Mil PTFE FILM TAPE
P-424 is an extra heavy-duty version of P-422. This tape has excellent high and low temperature capabilities, is ideal for die-cut insulators and typically used in Aerospace and Electrical Markets
Features
- Operates effectively over a wide temperature range of 250°F to 500° F because of its cured silicone adhesive.
- Impervious to most chemical attacks, including acids, solvents, fuels and most alkalies.
- The PTFE backing provides a low coefficient of friction, which makes for a slick, slippery surface that promotes the quick movement of materials
Structure

Properties
| BACKING MATERIAL | PTFE Film |
|---|---|
| ADHESIVE | Cured Silicone |
| COLOR | Gray |
| INSULATION CLASS UL | 356°F/ 180°C |
| CERTIFICATIONS | UL-510 |
| BOEING SPECIFICATIONS | BAC 5034 Type IV |
| IMPERIAL | METRIC |
| TOTAL TAPE THICKNESS | 11.6 mils | 0.295 mm |
|---|---|---|
| TENSILE STRENGTH | 60 lbs/in | 114 N/10mm |
| ELONGATION | 475% | 475% |
| ADHESION TO STEEL | 45 oz/in | 4.9 N/10mm |
| DIELECTRIC STRENGTH | 22,800 volts | 22.8 kV |
