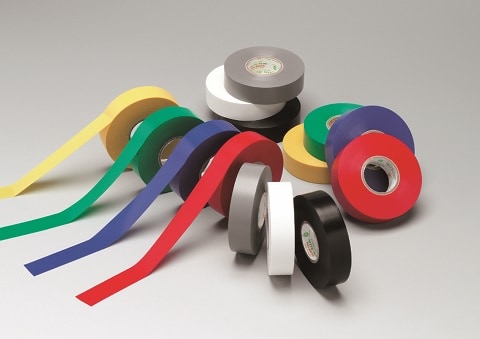

Vinyl Tape for Electric Insulation No.223S

Sold Out


Insulation tape for CRT degaussing coils boasts the world's No.1 share.

This vinyl adhesive tape used as flame-retardant insulation of degaussing coils, which determines CRT characteristics, boasts the world's No.1 share. The tape meets standards of the American UL (Underwriters Laboratories) and the Canadian CSA (Canadian Standards Association) and contributes to enhance safety of electronic ipment and products.


  • Offers superior flame-retardant and electrical insulation properties.
  • Can be used for wrapping corners of degaussing coils.


Product No No.223S
Adhesive Rubber
Thickness[mm] 0.19
Length[m] 20
Color Various Colors
Peeling strength [N/19mm] 5.64
Tensile strength [N/19mm] 73.5
Elongation [%] 280
Breakdown voltage [kV] 11.22
Electrolytic corrosion factor 1
Acquired Standard/ Characteristics UL-510FR ・ CSA certified


  • *The above values are sample observed values, not the guaranteed performance.


  • Electrical insulation and binding of CRT degaussing coils.
