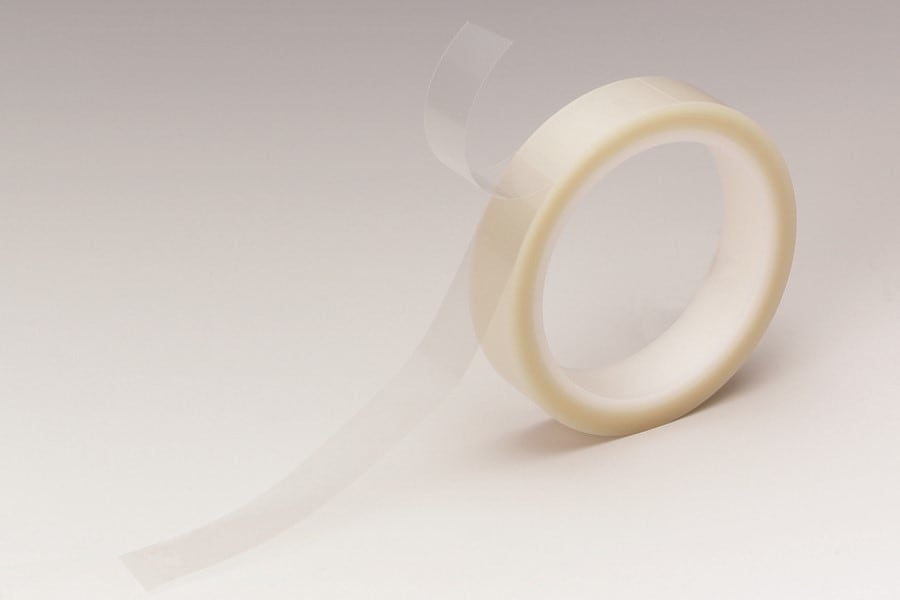

Thin, PET-based Double sided Tape No.5601/No.5603

Sold Out
0.0

Description

No.5601/No.5603 provide superior processability employing dust-free materials (the release liner and core are made of plastic).

Features

  • Suitable for bonding in limited space.
  • PET film carrier enables uniform tape thickness.
  • Excellent processability and workability provided by PET carrier.
  • Employs dust-free materials such as PET release liner and plastic core.
  • Halogen free. (*Chlorine compounds are purposely not used.)

Structure

Properties

Product No. 180° peeling strength in various temperatures [N/20mm]
(to stainless steel)
23°C 40°C 60°C 80°C
No.5601 6.0     5.6 4.5 4.4
No.5603 9.0 7.9 6.4 5.7

[Remarks]

  • * Measured by peeling in a 180° direction at a speed of 300 mm/min with 0.025 mm PET lining.
  • * Tape pressure application and measurement at temperature given in the table above.
  • * The figures are a sample of observed values, not guaranteed performance.

Applications

  • Fixing of reflectors and films used for LCD backlight modules for devices such as mobile phones.
  • Fixing of film materials inside small electronic equipment.
