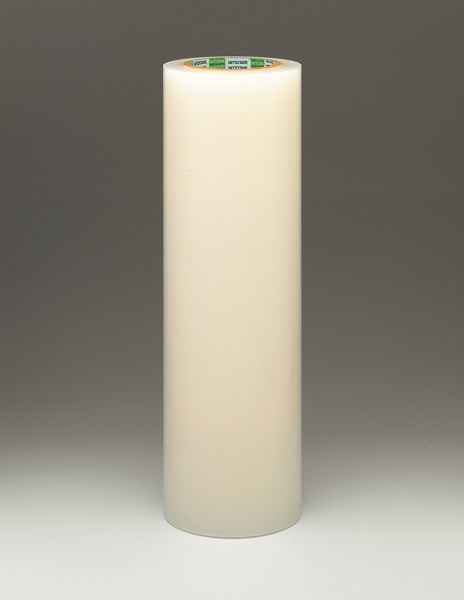

Surface Protective Material for Plastic SPV-P Series

Sold Out
0.0

Description

Low-adhesive material with superior transparency that do not contaminate surface of substrates.

SPV-P Series was developed using Nitto Denko’s proprietary multilayer film forming technology. Offers stable surface protective for cutting, punching, in-process transport and shipment for such substrates as PMMA (acrylic) plates, PC (polycarbonate) plates and LCD polarizing films.

Features

  • Unlike traditional adhesive coated type, the adhesive does not contaminate the substrate due to co-extrusion method of thermoplastic materials.
  • Transparency shows surface of the substrate without removing the tape.
  • Low adhesion, suitable for smooth surface.

Properties

Item Thickness [mm]*1 Adhesive strength[N/20mm] *2
SPV-P-367K 0.060 0.05
SPV-P-366K 0.60

[Test method]

  • *1: Nominal thickness
  • *2: Peeling angle: 180°, Peeling speed: 300mm/min

Applications

  • Surface protective for plastic plates such as acrylic (PMMA) and polycarbonate (PC).

Precautions

  • Avoid sunlight and store at room temperature and moderate humidity.
  • Do not press too strong when applying. This may cause the end of the tape to peel.
  • If applying to surfaces treated with machining oil, degrease the surface carefully. Any remains will be a cause for surface contamination or adhesive residue.
  • For use under severe conditions, please test and evaluate the product thoroughly beforehand.
  • Painting, plating, etching, or gluing the surface after peeling the tape may be troublesome due to the small amount of residue of the adhesive. Please inspect under actual situations thoroughly before application.
  • Painted boards, depending on conditions such as paint baking, may cause the tape to peel uneasily or peel off the paint together. Please evaluate thoroughly beforehand.
  • Surface treated boards such as alumite, depending on treatment conditions, may show different properties (peeling) of SPV. Please evaluate thoroughly beforehand.
  • Especially for applications against natural substrate (marble stone, lumber, etc) please contact our sales representative in charge.
  • The above datasheet is a sample observation value under certain testing conditions, not guaranteed performance.
  • The quality, performance, and/or functions of this product will differ according to the conditions of use. Please contact our department in charge for full details of this product.
  • Under severe conditions, this product may show difference between the sample observed values and the actual performance. Please test and evaluate the product thoroughly for your safety and better results.
  • This product and/or its features may change or be discontinued without any prior notice.
  • The intellectual property rights of this document belongs to Nitto Denko Corporation. Please contact our department in charge for usage not in accordance of the intended use. Copying and/or reproducing the document without notice are strictly prohibited. All rights reserved.
