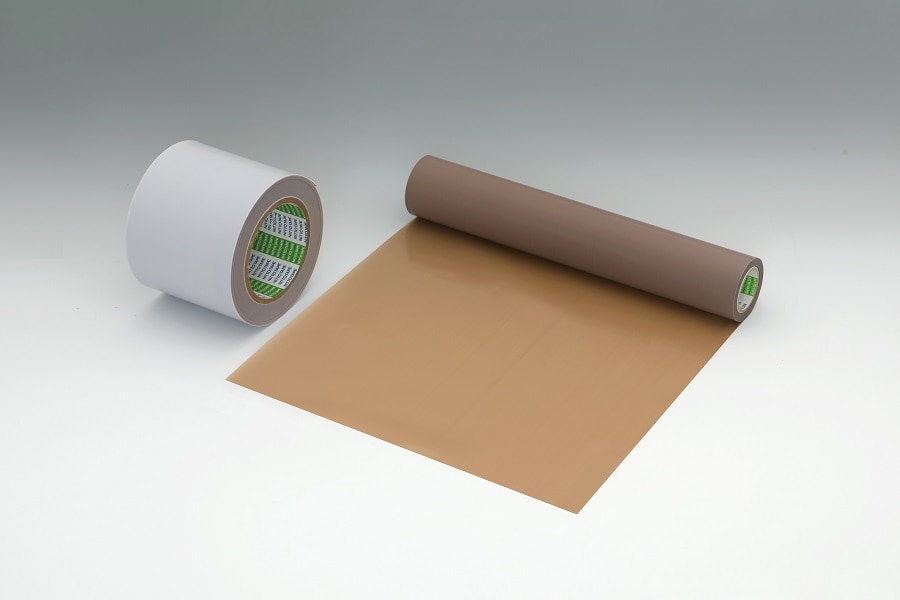

Single Surface Treated Fluoroplastic (PTFE) Film NITOFLON™ No.901UL
Description
Read More
Read Less
Single surface treated Fluoroplastic (PTFE) film to make adhesive applicable while preserving excellent PTFE characteristics, such as chemical resistance, electric insulation, and weatherability. Able to apply adhesive agent or double-sided adhesive tape.
Features
- Various thickness sizes are available from 0.05mm to 1.0mm.
- Commercially available adhesives and adhesive tapes can be applied to the treated surface side
- NO.901UL has excellent characteristics based on the original product, NO.900UL, such as heat resistance, electric insulation, sliding property, and chemical resistance, in addition to surface adhesiveness.
- Certified for UL94 flame retardancy standard (V-0 and VTM-0, Registration No. E52859).
Structure
Applications
-
Enhancing sliding property for hopper and guide roll, and improve surface characteristics by attaching on steel or wood plate.
Properties
Item | Unit | Property value(NO.901UL) | |||||||
---|---|---|---|---|---|---|---|---|---|
Thickness | mm | 0.05 | 0.08 | 0.10 | 0.13 | 0.18 | 0.30 | 0.50 | 1.00 |
Tensile strength | MPa | 50 | 50 | 50 | 50 | 50 | 50 | 45 | 40 |
Elongation | % | 300 | 300 | 310 | 320 | 330 | 330 | 370 | 400 |
Breakdown voltage | kV | 6.0 | 6.3 | 9.6 | 11.6 | 14.1 | 19.5 | 26.7 | 37.7 |
Relative gravity | - | 2.1~2.3 | |||||||
Flame resistance | - | UL94(E52859) VTM-0(0.02~0.24mmt) / V-0(over 0.25mm) |
*This data represents examples of measured values, and not guaranteed values.
Experimental video
Heat Resistance
Sliding Properties
Electrical Insulation
Chemical Resistance
Mold Release Properties
Weather Resistance
