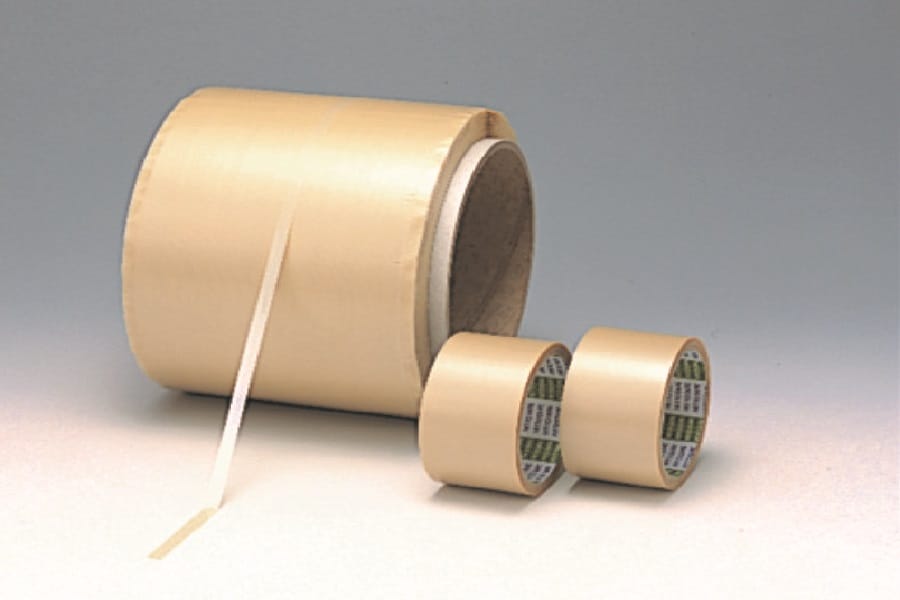

PPS Based Adhesive Tape for Heat-resistant Insulation No.320A
Description
Read More
Read Less
For applications that rire heat resistance such as fixing elements in aluminum electrolytic chip capacitors.
Equipped with PPS(Polyphenylene sulfide) film backing with superior heat resistance, the tape is used for insulating the electrodes of lithium ion secondary batteries and fixing the element of aluminum electrolytic chip capacitors that require heat resistance.
Features
- Offers superior electrical insulation.
- Offers superior dimension stability.
- Offers superior heat resistance (Normal service temperature is 160°C).
- Narrow width processing is available.
- Available in long lengths.
Structure
Properties
Product name | Polyphenylene sulfide adhesive tape | |
Product No. | No.320A#16 | No.320A |
Adhesive | Acrylic | |
Backing thickness/Total thickness[mm] | 0.016/0.035 | 0.025/0.053 |
Standard length [m] | 20 | |
Color | Cream | |
Peeling strength [N/10mm] | 3.0 | 3.3 |
Tensile strength [N/10mm] | 34 | 55 |
Elongation[%] | 64 | 60 |
Breakdown voltage [kV] | 3.7 | 5.5 |
Electrolytic corrosion factor | 1.00 |
[Remarks]
- *The above values are sample observed values, not the guaranteed performance
Applications
- Fixing of aluminum electrolytic capacitor elements.
- Insulation of electrodes in lithium ion secondary batteries.
