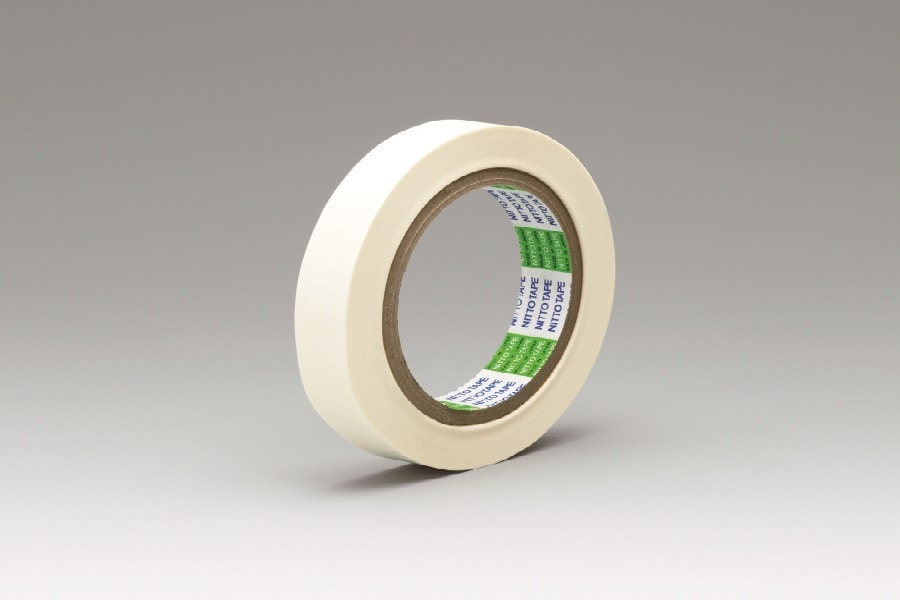

Nomex™ Based Adhesive Tape for Heat-resistant Insulation No.380/No.386UL
Description
Read More
Read Less
Superior heat resistance with stable electrical insulation even under high temperature.
Heat-resistant NOMEX is used as a substrate. Useful for electrical insulation and battery electrode insulation which requires heat resistance. No.386UL is a flame retardant adhesive tape certified by UL. * NOMEX™ is a registered trademark of DuPont.
Features
- Superior electrical insulation.
- Superior flame resistance.
- Superior heat resistance.
Structure
Properties
| Product No. | No.380 | No.386UL | |||
| Thickness[mm] | Total | 0.10 | 0.130 | 0.120 | 0.140 |
| Substrate | 0.050 | 0.075 | 0.050 | 0.075 | |
| Standard length[m] | 50 | 50 | |||
| Color | White | White | |||
| Peeling strength[N/19mm] | 9.5 | 8.7 | 7.4 | 6.9 | |
| Tensile strength[N/19mm] | 80 | 140 | 80 | 140 | |
| Elongation[%] | 10 | 10 | 10 | 10 | |
| Breakdown voltage[kV] | 3.0 | 3.5 | 3.0 | 3.5 | |
| Electrical corrosion factor | Over 0.95 | Over 0.9 | |||
[Remarks]
- No.386UL(UL 510 Flame Retardant・E34833)
- The figures are a sample of observed values, not guaranteed performance.
Applications
- Insulation/fixing of coil exterior
- Electrical insulation riring heat resistance
- Insulation of battery electrodes
