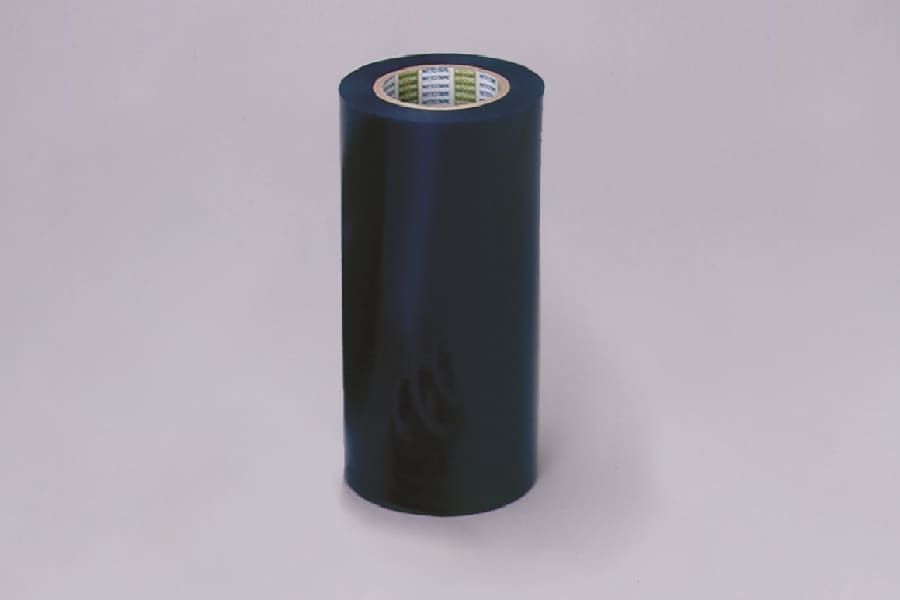

Masking Tape for Printed-circuit Board ELEP MASKING N-380R

Sold Out


Tapes that protect printed circuit boards from spray and hot vapors of plating solution during plating of printed circuit boards.

ELEP masking tape N-380R is a polyvinyl chloride-based surface protective material for masking printed-circuit boards. With its excellent chemical resistance and firm adhesion, the tape is suitable for preventing contamination of the circuit board by splashes and/or vapor of the plating solution.


  • Easy to unwind and easy to apply.
  • The special adhesive agent makes the tape firmly adhere to the printed-circuit board and does not peel or dislocate during work.
  • Exhibits even higher adhesiveness by pressing with heating roller.
  • Excellent in chemical resistance.
  • The tape does not peel or dislocate when it overlaps with one another because it does not use any silicone reverse-side treatment.
  • Adhesive strength hardly changes after application, and is easy to peel.


Product No. Thickness[mm] Adhesive strength[N/20mm]
N-380R 0.080 0.60


  • * Surface material: BA Stainless steel board


  • Masking of printed-circuit boards to prevent contamination by splashes and vapors of plating solution.


  • Avoid sunlight and store at room temperature and moderate humidity.
  • Do not press too strong when applying. This may cause the end of the tape to peel.
  • If applying to surfaces treated with machining oil, degrease the surface carefully. Any remains will be a cause for surface contamination or adhesive residue.
  • For use under severe conditions, please test and evaluate the product thoroughly beforehand.
  • Painting, plating, etching, or gluing the surface after peeling the tape may be troublesome due to the small amount of residue of the adhesive. Please inspect under actual situations thoroughly before application.
  • Painted boards, depending on conditions such as paint baking, may cause the tape to peel uneasily or peel off the paint together. Please evaluate thoroughly beforehand.
  • Surface treated boards such as alumite, depending on treatment conditions, may show different properties (peeling) of SPV. Please evaluate thoroughly beforehand.
  • Especially for applications against natural substrate (marble stone, lumber, etc.) please contact our sales representative in charge.
  • The above datasheet is a sample observation value under certain testing conditions, not guaranteed performance.
  • The quality, performance, and/or functions of this product will differ according to the conditions of use. Please contact our department in charge for full details of this product.
  • Under severe conditions, this product may show difference between the sample observed values and the actual performance. Please test and evaluate the product thoroughly for your safety and better results.
  • This product and/or its features may change or be discontinued without any prior notice.
  • The intellectual property rights of this document belongs to Nitto Denko Corporation. Please contact our department in charge for usage not in accordance of the intended use. Copying and/or reproducing the document without notice are strictly prohibited. All rights reserved.
