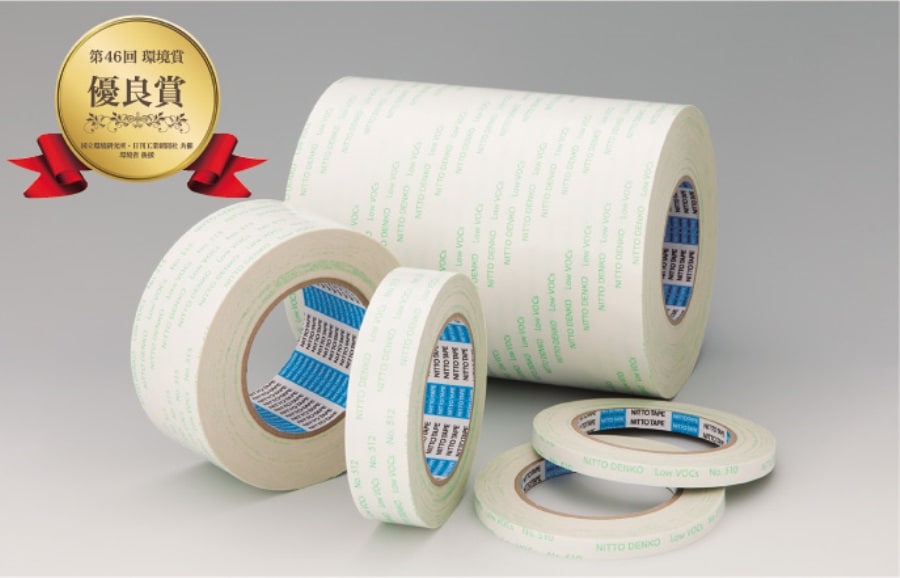

Low VOC double sided tape No. 515 has excellent holding ability and level difference absorption.

Sold Out

  • Sutable for fixing materials that have bumpy or uneven surfaces because this tape is thick.
  • Fixing of interior materials for housing.

Awarded the 46th “Environmental Award” Excellent Award in Japan.


  • Organic solvents, for example toluene, xylene, ethyl acetate, are not contained.
  • Double sided tape emits minimal volatile organic compounds (VOC).
  • Meets the guideline values for the emission of 13 VOCs designated by the Ministry of Health, Labour and Welfare.
  • 0.25mm thick Non-woven fabric carrier allows for superior adherence and followability to substrates.
  • Adheres well to substrates such as metals, plastics, and wood-based materials.
  • Ten restricted substances by RoHS are not contained.


*Tape thickness is without release liner [NITTO DENKO Low VOCs No.515] is printed on release liner


180° peeling strength according to type of substrate

Unit: N/20mm

Substrate Adhesive Strength
Stainless steel 16.5
Aluminum 14.0
Acrylic 16.5
ABS 14.5
Polypropylene 10.5
Polystyrene 14.5
PET film 16.0
Glass 15.0
Lauan 14.0
Plywood 10.0


  • * Measured by peeling in a 180° direction at a speed of 300 mm/min at 23℃ with 0.025 mm PET lining.


Lineup double sided adhesive tapes with VOC(*) emission level lower than the guideline values for indoor air concentrations set by the Ministry of Health, Labor and Welfare.

Product No. Tape Thickness [mm] Color Points for selection
No.510 0.15 White translucent Standard item for bonding metals and plastics.
No.512 0.15 White translucent Suitable for rough surfaces with its strong tackiness.
No.515 0.25 White translucent A product to be used when a certain amount of tape thickness is necessary.


  • * The above values are sample observed values, not the guaranteed performance.
  • * The applications given herein are suggested examples. Please make sure the product is capable of the application before actually attempting to put it to use.


  • Fixing of interior fittings reinforcement.
  • Fixing of metal name plate.
  • Fixing of plastic display plate.
