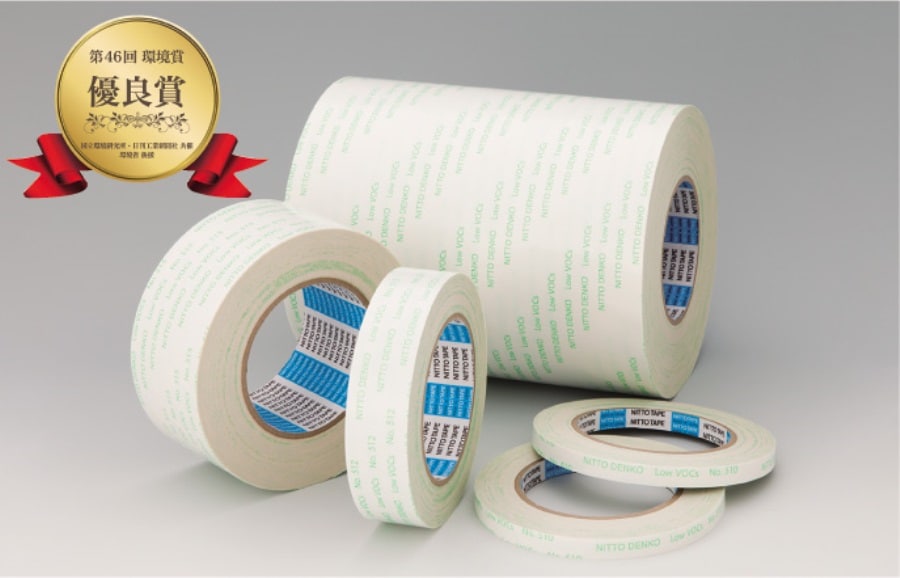

Low VOC double-sided tape No. 512 uses a flexible adhesive, giving it excellent rough-surface adhesion.

Sold Out

  • Fixing rough surface materials such as foam and non-woven fabric
  • Bonding of automobile interior parts.

Awarded the 46th “Environmental Award” Excellent Award in Japan.


  • Organic solvents, for example toluene, xylene, ethyl acetate, are not contained.
  • Double sided tape emits minimal volatile organic compounds (VOC).
  • Meets the guideline values for the emission of 13 VOCs designated by the Ministry of Health, Labour and Welfare.
  • Non-woven fabric carrier allows for superior adherence and followability to substrates.
  • Adheres well to substrates such as foam materials, metal and plastics.
  • Ten restricted substances by RoHS are not contained.


*Tape thickness is without release liner [NITTO DENKO Low VOCs No.512] is printed on release liner


180° peeling strength according to type of substrate

Unit: N/20mm

Substrate Adhesive Strength
Stainless steel 14.8
Aluminum 13.8
Acrylic 15.0
ABS 14.5
P P 12.0
PS t 14.3
Soft PVC 15.0
Glass 10.3
Polyethylene foam 9.0 (foam breakdown)
Ester type urethane foam 9.2 (foam breakdown)


  • * Measured by peeling in a 180° direction at a speed of 300 mm/min at 23℃ with 0.025 mm PET lining.


Lineup of Low VOC Emission Double Sided Adhesive Tapes

The following lineup consists of double sided adhesive tapes with a VOC(*) emission level lower than the guideline values for indoor air concentrations set by the Ministry of Health, Labor and Welfare.

Product No. Tape Thickness [mm] Color Points for selection
No.510 0.15 White translucent Standard product for bonding metals and plastics.
No.512 0.15 White translucent Suitable for rough surfaces with its strong tackiness.
No.515 0.25 White translucent A product to be used when a certain amount of tape thickness is necessary.


  • * The above values are sample observed values, not the guaranteed performance.
  • * The applications given herein are suggested examples. Please make sure the product is capable of the application before actually attempting to put it to use.


  • Fixing of sound-absorbing materials inside automobiles.
  • Fixing of cushioning materials to household and office automation equipment.
  • Fixing of plastic display plates
  • Bonding of film and paper
