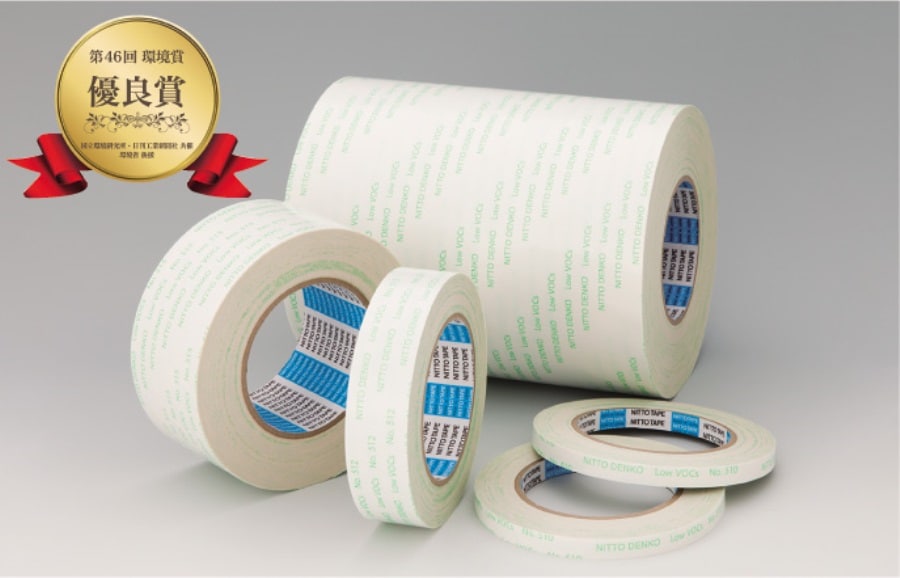

Low VOC double sided tape No. 510 has excellent holding ability due to the hardening of the adhesive.

Name: Low VOC double sided tape No. 510 has excellent holding ability due to the hardening of the adhesive.
Brand: Hong Teck Hin
Availability: OutOfStock

Sold Out

0.0

Description

Fixing of metal plastic and film.
Fixing of metal nameplates to home appliances.

Awarded the 46th “Environmental Award” Excellent Award in Japan.

Features

Organic solvents, for example toluene, xylene, ethyl acetate, are not contained.　　
Double sided tape emits minimal volatile organic compounds (VOC).
Meets the guideline values for the emission of 13 VOCs designated by the Ministry of Health, Labour and Welfare.
Non-woven fabric carrier allows for superior adherence and followability to substrates.
Adheres well to substrates such as metal and plastics.
Ten restricted substances by RoHS are not contained.

Structure

*Tape thickness is without release liner [NITTO DENKO Low VOCs No.510] is printed on release liner

Properties

Adhesive Properties
180° peeling strength according to type of substrate

Unit:N/20mm

Substrate	Adhesive Strength
Stainless steel	12.0
Aluminum	11.8
Acrylic	11.8
ABS	10.0
PP	10.0
HIPS	12.0
PSt	12.8
PET	11.0
POM	10.5
PC	14.2
Plywood	6.3
Glass	9.2

[Remarks]

* Measured by pulling in180°direction at a speed of 300mm/min at 23°C with PET#25 backing. (Conform to JIS Z 0237)

Lineup

Lineup of Low VOC Emission Double Sided Adhesive Tapes. Lineup of double sided adhesive tape with VOC emission level lower than the guideline values for indoor air concentrations set by the Ministry of Health, Labor and Welfare.

Product No.	Tape thickness [mm]	color	Point for selection
No.510	0.15	White and translucent	Standard item for metal and plastic
No.512	0.15	White and translucent	Suitable for rough surfaces with its strong tackiness
No.515	0.25	White and translucent	A product to be used when a certain amount of tape thickness is necessary
