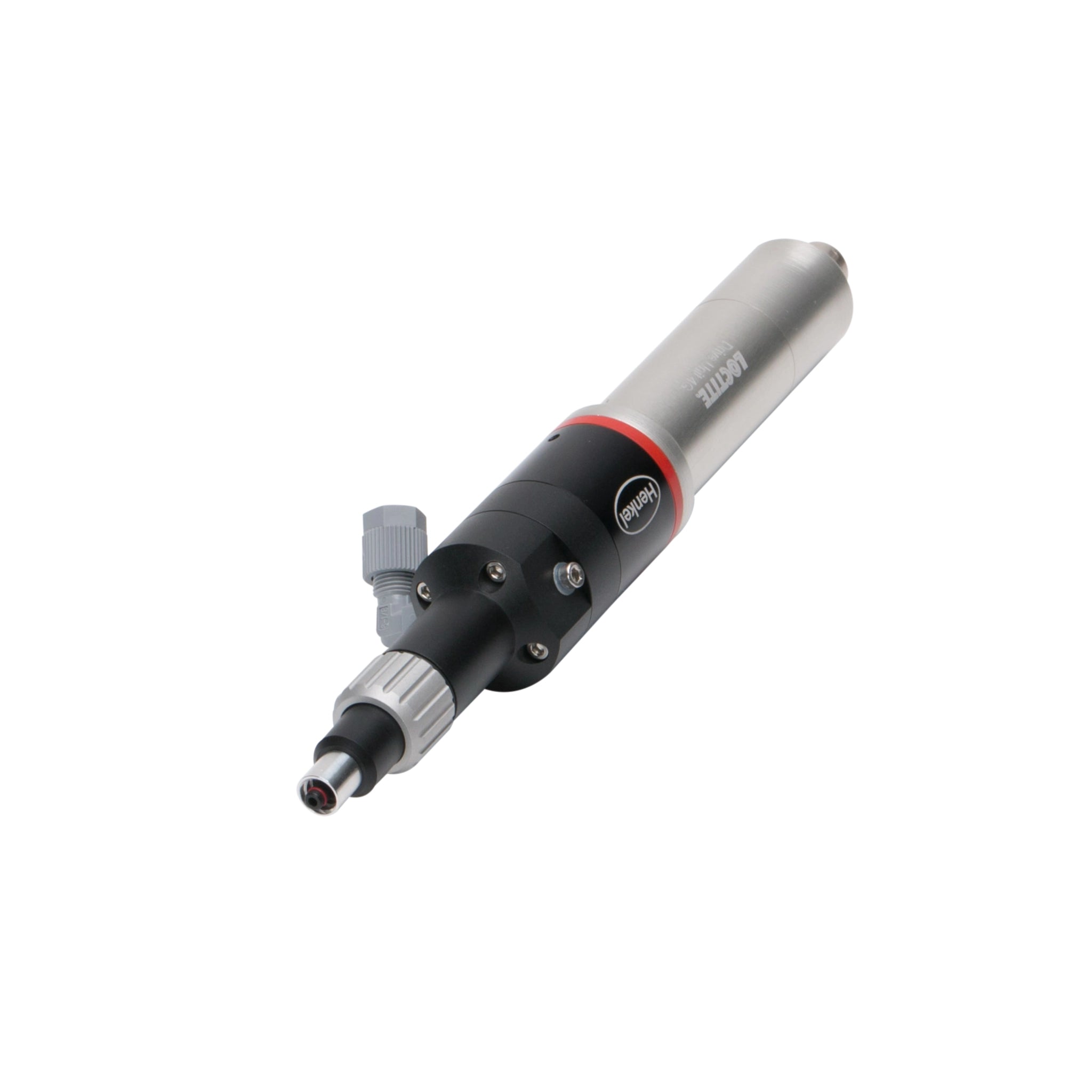

Loctite Compact Rotor Dispenser 4.0 1196160

Sale price$6,528.00
Sold Out


The volumetric rotor dispenser applies LOCTITE® adhesives, like anaeobics, acrylates and UV acrylates out of a reservoir with high repeatability. The limit of viscosity is 100,000 mPas. The dispenser is a rotating displacement system. It consists of a rotor and a stator. The different geometries of the rotor and stator cause the formation of cavities. Rotation of the rotor in the stator generates a flow that is proportional to rotary angle, and so delivery is speed-dependent. The intrinsic self-sealing capability depends on the viscosity of the adhesive.

  • Volumetric device, flow rate proportional to speed, electronically controlled.
  • Dispenses anaerobics, acrylates and UV acrylates.
  • Applications include drop or bead dispensing or potting.
  • Integrated Luer lock-adapter with O-ring (patented) ensures sealing in reverse flow!
  • Because of the reversible direction of flow (suckback) an exact stop of the product flow can be achieved.
