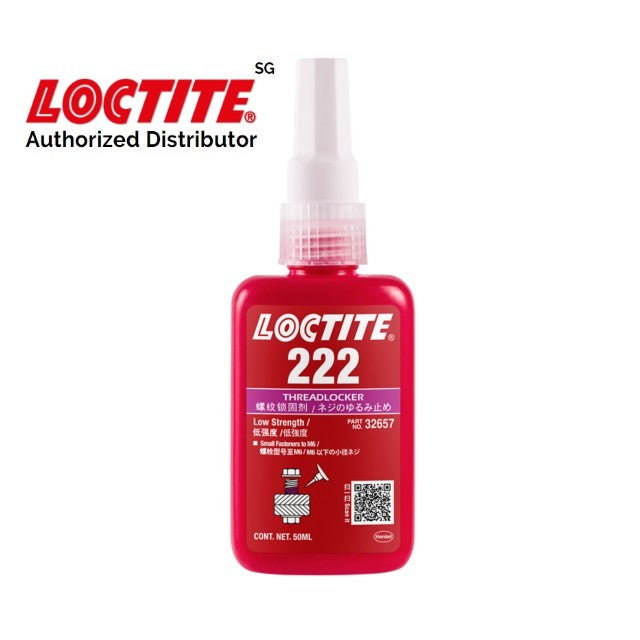

Loctite 222 Anaerobic Adhesive Threadlocker Purple 50ml

Loctite 222 Anaerobic Adhesive Threadlocker Purple 50ml

• Strength : Low
• Viscosity : Low, thixotropic
• Key Substrates : Metal: Brass, Metal: Steel, Metal: Steel - Stainless Steel
• Color : Purple
• Curing type: Anaerobic
• Application : Threadlocking

LOCTITE® 222 is a low-strength threadlocker that allows the adjustment of screws including countersunk head screws and set screws. Good on low-strength metals which could fracture during disassembly, e.g. aluminum or brass. The product works on all metals, including passive substrates such as stainless steel, aluminum and plated surfaces. t is proven to be tolerant of minor contamination due to industrial oils, e.g. motor oils, corrosion prevention oils and cutting fluids.

• Ideal for low-strength threadlocking of adjusting screws, countersunk head screws and set screws
• Prevents loosening on vibrating assemblies, e.g. pumps, gear boxes or presses
• Permits disassembly with hand tools
• Especially suited to small thread sizes
• P1 NSF Reg. No.: 123002

LOCTITE®222 is designed for the locking and sealing of
threaded fasteners which require easy disassembly with
standard hand tools. The product cures when confined in the
absence of air between close fitting metal surfaces and
prevents loosening and leakage from shock and vibration.
Particularly suitable for applications such as adjustment of
set screws, small diameter or long engagement length
fasteners, where easy disassembly is required without
shearing the screw. The thixotropic nature of LOCTITE®222
reduces the migration of liquid product after application to the
substrate

TYPICAL CURING PERFORMANCE

Cure Speed vs. Substrate

The rate of cure will depend on the substrate used. The graph
below shows the breakaway strength developed with time on
M10 steel nuts and bolts compared to different materials and
tested according to ISO 10964.

Cure Speed vs. Bond Gap

The rate of cure will depend on the bondline gap. Gaps in
threaded fasteners depends on thread type, quality and size.
The following graph shows shear strength developed with time
on steel pins and collars at different controlled gaps and tested
according to ISO 10123.

Cure Speed vs. Temperature

The rate of cure will depend on the temperature. The graph
below shows the breakaway strength developed with time at
different temperatures on M10 steel nuts and bolts and tested
according to ISO 10964.

Cure Speed vs. Activator

Where cure speed is unacceptably long, or large gaps are
present, applying activator to the surface will improve cure
speed. The graph below shows the breakaway strength
developed with time on M10 zinc dichromate steel nuts and
bolts using Activator 7471™ and 7649™ and tested according
to ISO 10964.

GENERAL INFORMATION

This product is not recommended for use in pure oxygen
and/or oxygen rich systems and should not be selected as
a sealant for chlorine or other strong oxidizing materials.
For safe handling information on this product, consult the
Safety Data Sheet (SDS).
Where aqueous washing systems are used to clean the
surfaces before bonding, it is important to check for
compatibility of the washing solution with the adhesive. In
some cases these aqueous washes can affect the cure and
performance of the adhesive.
This product is not normally recommended for use on plastics
(particularly thermoplastic materials where stress cracking of
the plastic could result). Users are recommended to confirm
compatibility of the product with such substrates.

Directions for use:

For Assembly

1. 1. For best results, clean all surfaces (external and internal)
   with a LOCTITE® cleaning solvent and allow to dry.
2. If the material is an inactive metal or the cure speed is too
   slow, spray all threads with and allow to dry.
3. Shake the product thoroughly before use.
4. To prevent the product from clogging in the nozzle, do not
   allow the tip to touch metal surfaces during application.
5. For Thru Holes, apply several drops of the product onto
   the bolt at the nut engagement area.
6. For Blind Holes, apply several drops of the product down
   the internal threads to the bottom of the hole.
7. Assemble and tighten as required.
8. For Sealing Applications, apply a 360° bead of product
   to the leading threads of the male fitting, leaving the first
   thread free. Force the material into the threads to
   thouroughly fill the voids. For bigger threads and voids,
   adjust product amount accordingly and apply a 360° bead
   of product on the female threads also.

For Disassembly

1. 1. Remove with standard hand tools.
2. In rare instances where hand tools do not work because
   of excessive engagement length, apply localized heat to
   nut or bolt to approximately 250 °C. Disassemble while
   hot.

For Cleanup

1. Cured product can be removed with a combination of
   soaking in a Loctite solvent and mechanical abrasion
   such as a wire brush

Loctite Material Specification

LMS dated May-18, 1999. Test reports for each batch are
available for the indicated properties. LMS test reports include
selected QC test parameters considered appropriate to
specifications for customer use. Additionally, comprehensive
controls are in place to assure product quality and
consistency. Special customer specification requirements may
be coordinated through Henkel Quality.

Storage

Store product in the unopened container in a dry location.
Storage information may be indicated on the product container
labeling. Optimal Storage: 8 °C to 21 °C. Storage below 8 °C or
greater than 28 °C can adversely affect product properties.
Material removed from containers may be contaminated during
use. Do not return product to the original container. Henkel
Corporation cannot assume responsibility for product which
has been contaminated or stored under conditions other than
those previously indicated. If additional information is required,
please contact your local Technical Service Center or
Customer Service Representative.
