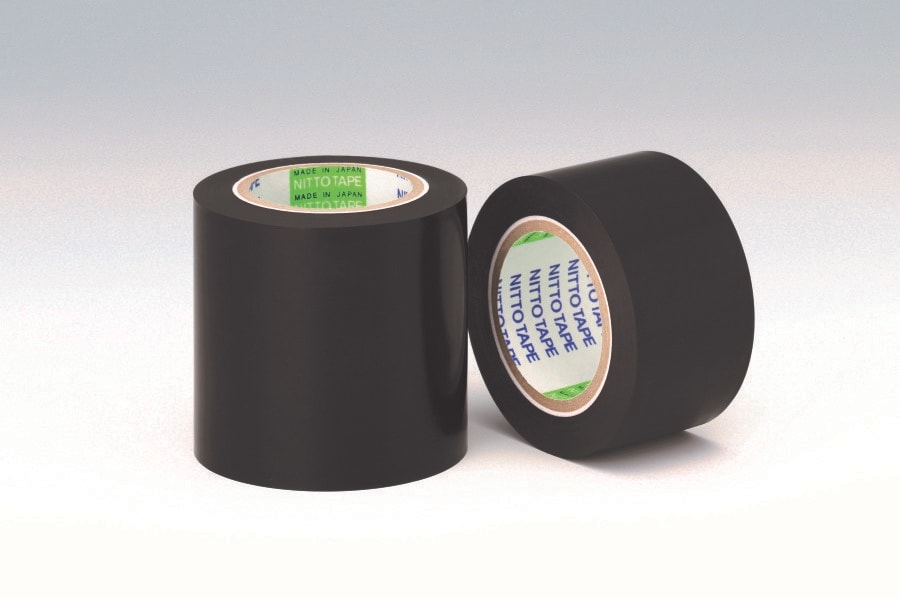

Fluoroplastic Semiconductive Adhesive Tape NITOFLON No.903SC

Sold Out
0.0

Description

Semiconducting fluoroplastic adhesive tape for static protection.

NITOFLON No.903SC is a tape consisting of polytetrafluoroethylene (PTFE) film containing conductive carbons as its base material. Single surface treated and coated with an acrylic adhesive. The base material is semiconductive and prevents static.

Features

  • Semiconductive base material prevents accumulation of static.
  • Can smoothly laminate, wind, bind and seal, just like regular adhesive tapes.

Structure

Properties

N0.903 SC
Property Unit Characteristic value
Thickness mm 0.11
Tensile strength N/19mm 40
Peeling strength Stainless steel plate N/19mm 12
Unwinding force N/19mm 3.5
Temperature range °C 0~80

[Remarks]

  • *The above values are sample observed values, not the guaranteed performance.

Experimental video

Heat Resistance

Sliding Properties

Electrical Insulation

Chemical Resistance

Mold Release Properties

Weather Resistance
