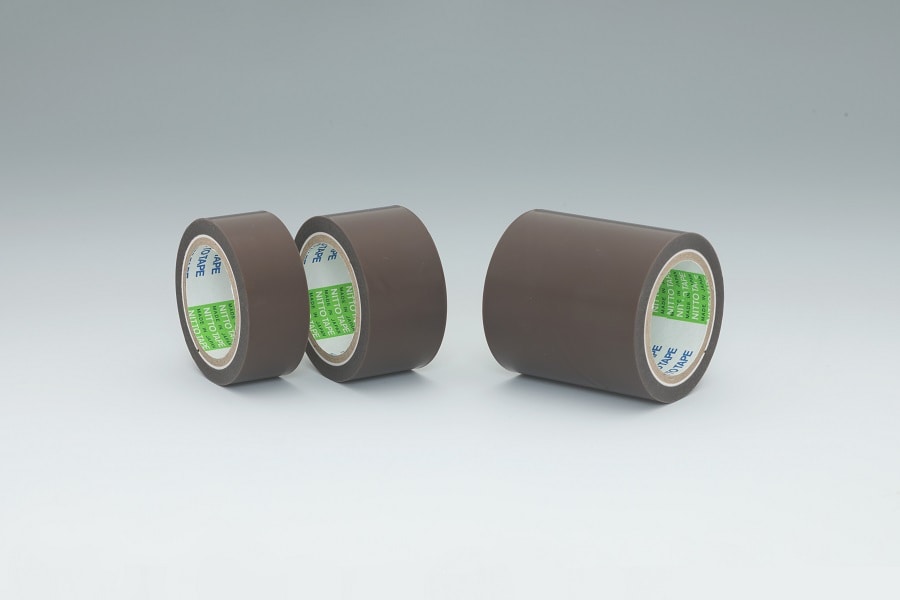

Fluoroplastic (PTFE) Adhesive Tape with Excellent Heat Resistance, Insulation, Sliding. NITOFLON™ No.903UL
Description
Read More
Read Less
Adhesive tape with silicone adhesive applied to fluoroplastic (PTFE) film. Can be used in a temperature range of -60°C to 200°C and meets UL-510 flame retardant standards. Excellent electrical insulation and sliding property. Can be used in a variety of applications utilizing the features of fluoroplastic.
Features
- Excellent properties such as heat resistance, electrical insulation, sliding property, water repellency and releasability.
- Can be used continuously in a wide range of -60°C to 200°C (recommended value), and can be used at higher temperatures for short periods of time.
- Certified UL510 flame retardancy standard (Registration Number E34833).
- It performs good adhesion to various materials.
Structure
Applications
- Insulation of electric wires, cables, and coils
- Electrode insulation in power storage devices such as secondary batteries
- Heat-resistant sliding of printer paper-feeding section
- Insulation and sliding of motor drive systems
- Solder masking
- Friction noise control inside automobiles or friction control in sliding sections
- Improve releasability during molding process
Properties
Items | Unit | Characteristic value | |||
---|---|---|---|---|---|
Total Thickness | mm | 0.08 | 0.13 | 0.18 | 0.23 |
180° Peeling strength (Substrate : Stainless steel) |
N/19mm | 5.6 | 7.1 | 7.4 | 8.7 |
Unwinding force | N/19mm | 4.4 | 5.8 | 7.1 | 8.9 |
Tensile strength | N/19mm | 55 | 93 | 160 | 210 |
Elongation | % | 180 | 220 | 220 | 220 |
Breakdown voltage | kV | 8 | 11 | 14 | 15 |
Coefficient kinetic friction | - | 0.1 | |||
Flame Retardant | - | UL510 Flame Retardant (E34833) | |||
Color | - | Brownish gray | |||
Usable temperature (Continuous usa) |
℃ | -60 to 200 |
*This data represents examples of measured values, and not guaranteed values.
Experimental video
Heat Resistance |
Sliding Properties |
Electrical Insulation |
Chemical Resistance |
Mold Release Properties |
Weather Resistance |
