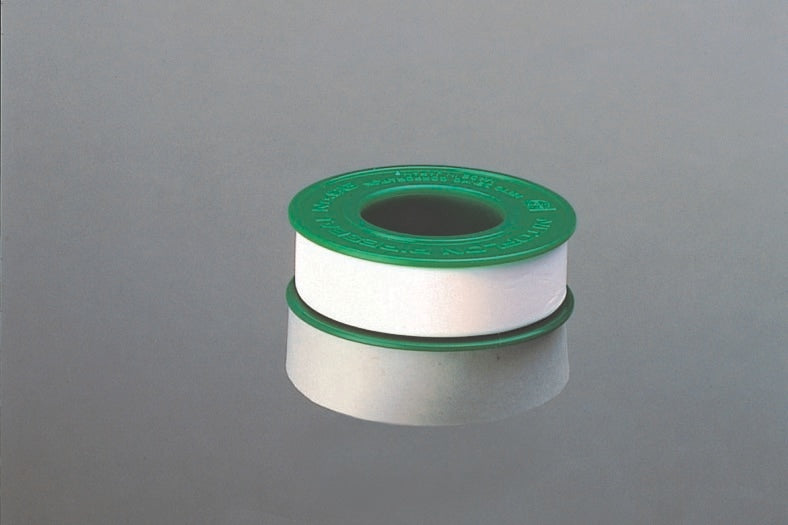

Fluoroplastic Product NITOFLON Pipe Seal No.95S
Description
Read More
Read Less
Pipe sealing tape
Features
- Its unique self-welding capability provides a tight seal by simply wrapping it around screw couplings. Easy to screw on, attach, and remove.
- Screw coupling leaks caused by gaps between male and female screws can be prevented, especially by increasing elongation in the transverse direction.
- Featuring impressive cold/heat resistance capabilities, with a temp range of -100 to 260 ℃.
- Most chemicals (excluding fused alkali metals) Impenetrable by solvents or vapors.
- Unlike with conventional twine and liquid compounds, your hands won't get dirty. Work is made quick and easy. Usable with metal pipes such as iron, aluminum stainless steel, copper, and aluminum, as well as with plastic piping such as PVC.
Properties
Product No. | No.95 (JIS) | No.95S | |
Size | Thickness [mm] | 0.1 | |
Width [mm] | 13 | ||
Length [m] | 15 | 5/15 | |
Tensile strength | [Mpa] | 7.0 or higher | ー |
Tensile load | N | ー | 6.9~13.7 |
Elongation | Machine direction [%] | 50 | 80 |
Operating temperature range [℃] | -100 to 260 | ||
Flammability | Nonflammable | ||
Chemical resistance | Strong acid | Excellent | |
Alkali | Excellent | ||
Organic solvent | Excellent |
Specifications
Product No. | No.95 (JIS) / No.95S | |
Size | Thickness: 0.1mm | Thickness: 0.1mm |
Width: 13mm | Width: 13mm | |
Length: 5m | Length: 15m | |
Individual package | 1 roll | 1 roll |
(Plastic reel) | (Plastic reel) | |
Inner package | 10 roll | 10 roll |
(Stored in case) | (Stored in case) | |
Outer package | 1,000 roll | 600 roll |
(Stored in cardboard box) | (Stored in cardboard box) |
Applications
- Sealing for various pipe couplings.
Experimental video
Heat Resistance
Sliding Properties
Electrical Insulation
Chemical Resistance
Mold Release Properties
Weather Resistance
