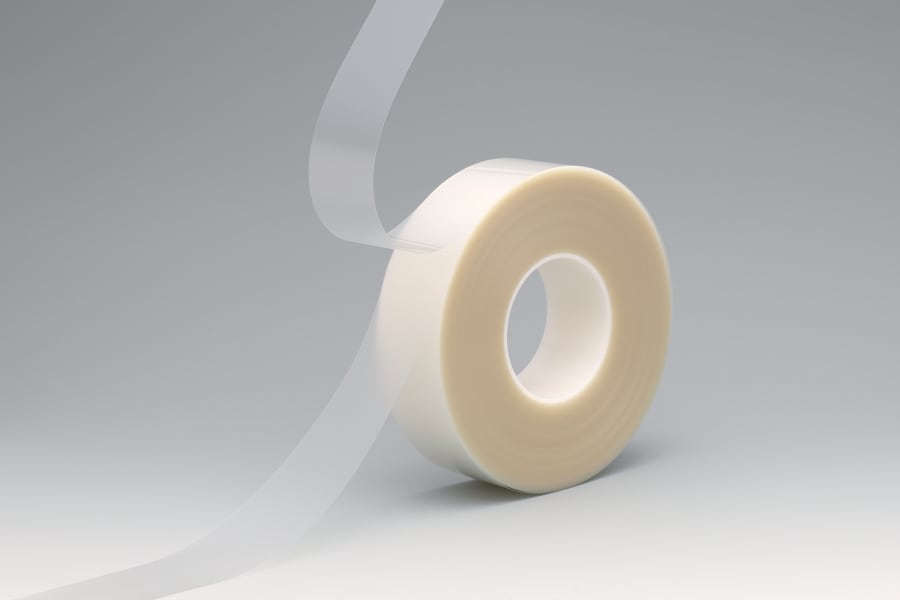

Double sided, Silicone-free Tape with Excellent Function of Die-cutting Process DSP1220(60)

Sold Out


DSP1220 (60) is a low outgas and silicone-free*double coated adhesive tape with PET carrier.

It is ideal to fix parts for electronic equipment and components that are concerned about outgas. It offers excellent processability and workability for picking dregs since adhesive re-bonds very little after punching process. *Silicone-free:Silicone material is not intentionally used.


  • The adhesive tape releases minimal outgas.
  • Silicone material is not intentionally used.
  • Offers excellent processability and workability when its punching process.
  • Superior resistance to repulsion.
  • Halogen-free* type. (*Chloride compounds are not intentionally used)
  • The ten hazardous materials restricted by the RoHS directive are not compounded.


*Tape thickness excludes thickness of release liner.



Unit µg/cm²

Outgas qty. 0.3
  • Equipment: GC/MS
  • Heating conditions: 120℃ x 10min
  • Sampling method: Purge and trap headspace analysis
  • Measurement standard: n-Decane

Siloxane gas

Unit ng/cm²

Siloxane gas qty. <0.4
  • Equipment: GC/MS
  • Heating conditions: 120℃ x 10min
  • Sampling method: Purge and trap headspace analysis
  • Measurement standard: D3-D6


  • For fixing stopping film to HDD housing.
  • For FPC and HDD spindle motor fixing.
  • For fixing film or metallic foil to electronic devices or parts.


[Usage Precautions]

  • Make sure to remove any oils, moisture, dust, etc. from the substrate.
  • As this is a pressure-sensitive adhesive, make sure to apply ample pressure after attachment.
  • Make sure to smooth out uneven or rough surfaces as much as possible.
  • There are some materials difficult to attach to, such as rubber, polypropylene, and polyethylene. Please check this before use.
  • A minimum temperature of 10℃ is suitable for attachment. (Initial adhesive strength is reduced at temperatures lower than 10℃ in the winter months, etc.)
  • It takes a little time for the tape's original adhesive strength to take full effect, so avoid placing or using the tape in a situation in which a lot of strength is needed until several hours have passed from the time of attachment.
  • Do not touch the tape with bare hands once removed from the wrapping.
  • When using this product, please avoid contact with materials or tools containing silicone oil, machining oil, or release agents for rolling or metal molds.

[Storage Precautions]

  • Make sure to store this product in a box.
  • Avoid storing in high-temperature or high-moisture areas. This product should be stored in a cool, dark area away from direct sunlight.
  • Please use this tape within 6 months of storage.

[Safety Precautions]

  • Take a careful consideration if this product is adapted to the use, purpose and condition before using. The tape may peel in some cases depending on substrate and attachment conditions.
  • When using this product in areas that may pose a risk of accident, use together with a different joining method.
