Composite parts for automotive Vent filter TEMISH ™

It can be installed for sealing case such as automotive etc.
Perform excellent waterproof and air permeability due to the membrane with micro pore.

Perform new functions by the parts type product which TEMISH combined with a molded item such as plastic or thermoplastic elastomer etc. Further, it realizes reduction of the number parts or workload, thereby achieves total cost performance.

Features

• Perform the functions of waterproof and dustproof and prevent damages of cases while having air permeability.
• Improve reliability and workability which install in housing by making the molded parts

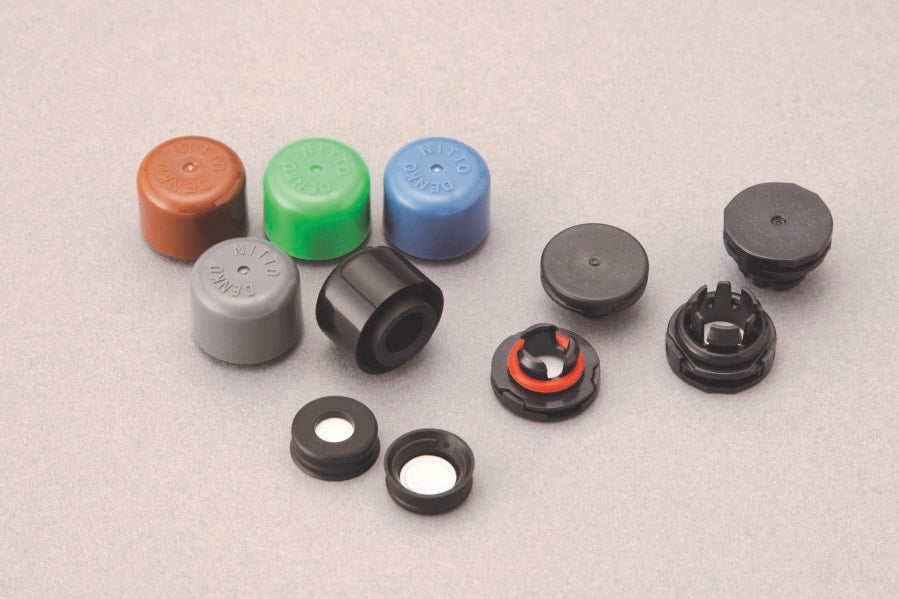

TEMISH™ CAPSEAL™
Features

• Filter is protected by the cap to prevent directly damage to membrane.
• High water resistance, high ventilation and oleophobic types are available.

Structure

Function

[Remarks]
※1 Permeation volume at differential pressure 1kPa
※2 JIS L1092 A method (low water pressure)
※3 JIS L1092 B method (high water pressure)
※The data is representing value,not guaranteed performance.

Main applications

• C2-NTF1026-L01（Fog lamp ,Rear lamp）
• C2-NTF9208-L01（Head lamp,Rear lamp）
• C2-NTF130SL （Head lamp）
• C2-NTF210SL （Fog lamp）
• C2-NTF220SL （Fog lamp,Rear lamp）

TEMISH™ VPF Series
Features

• The filter design is specific for automotive lamps to quickly discharge pressure and moisture in the lamp.
• Excellent properties such as waterproofing, dust-proofing, and oil-repellent.

Product image

Function

*1 Permeation volume at differential pressure 1kPa　
*2 JIS L 1092 B method（high water pressure method）

Electrical applications

TEMISH™ Z Series
Features

• Excellent features such as cold resistance and heat resistance.
• By oleophobic performance, it is able to prevent penetration of window washer liquid and automotive related oil.
• By excellent durability, it’s suitable for internal pressure adjustment of automotive ECU.
• It is possible to install in any direction with “one touch” easy installation method

Structure

Z3-NTF210SE

Z-PLUG-S

Applications

• Adjusting internal pressure for various ECU case.
• Lamp
• Motor
• Lighting equipment

[Remarks]
※1 Permeation volume at differential pressure 1kP
※2 JIS L1092 B method (high water pressure)
※The data is representing value,not guaranteed performance.

Small motor applications

TEMISH™ E3-NTF Series
Features

• Easy method is available for installation.
• Excellent features such as air permeability, waterproof and dustproof.

Structure

Applications

• Wiper motor
• Power window motor

[Remarks]
※1 Permeation volume at differential pressure 1kPa
※2 JIS L1092 B method (high water pressure)
※The data is representing value,not guaranteed performance.
