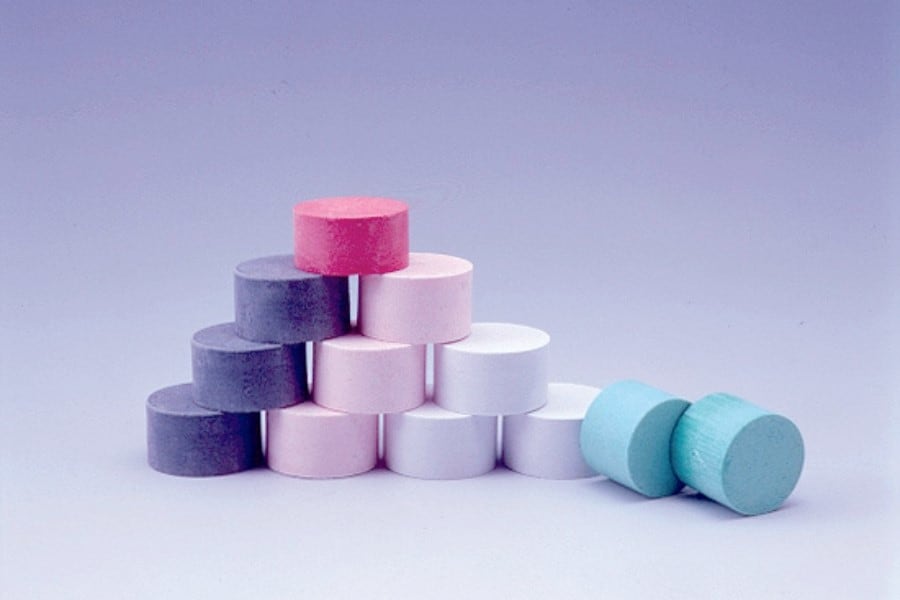

Clear molding compound for optical semiconductor NITORON T(NT) Series

Sold Out


About the Product Guidance

NT Product Name (for Transfer)

Names of NT products for transfer have three parts connected by a hyphen as shown below. NT-XXX-ABBCC NT-XXXX-ABCC The first “NT” is an abbreviation for NITRON -TTM, which is Nitto’s optical semiconductor encapsulating transparent resin. The second part generally consists of 3 or 4 letters, and represents the product group with identical main material and composition. Products with the same letters will show similar major properties. If the last letter is either H or S (NT-300 Series) this shows the molding speed difference. The last part consists of 4 to 5 numbers, and indicates the color code, cut-off wavelength, and content of optical dispersant. See the following chart for descriptions.


IR Cut resin for Human Eye Ambient Sensor

Absorption Spectrum of a Visible Light Shielding Optical Semiconductor Sealing Resin

Line Up

About the NT-300 Series

Curing time Adhesion with chips Adhesion with the frame
Capable Good Excellent
H Series (2 minute curing type) Good NT-301H NT-300H NT-309H
Excellent NT-305H NT-304H NT-306H
S Series (45 second curing type) Good - NT-300S -
Excellent NT-307S NT-308S -


The official name for the products above have 4 or 5 numbers added (i.e. NT-3XXH-ABBCC). These numbers represent properties such as color phase, cut-off wavelength, and optical dispersant content rate. Products with reduced particles have the letter Q added (i.e. NT-3XXHQ-ABBCC).

Regarding the cleaning of the die for the NT-300, the following conditions are recommended.) Clean and deburr with a cleaning resin.) Then to condition the die, mold the conditioning resin* a few times.

* Conditioning resin: KNJ-P (Nitto Denko product)

Resin with Tranceparent Filler

Filler contents wt% 0 30 50
S.G. - 1.2 1.45 1.66
TG(DSC) Tmg C 152 150 151
CTE1 TMA ppm/C 64 52 43
CTE2 TMA ppm/C 170 142 12.5
Direct ray transmittance 650nm % 98.5 42.2 28.5
Total light transmittance 650nm % 94.2 91.8 90.6
Water Absorption 85C/85%RH,168hr wt% 1.83 1.29 0.99
Thermal Conductivity W/mK 0.2 0.26 0.34


  • *Transparent Filler can be a applled for NT-510 Series/600 Series/300 Series sofar. But other items is negotiable.
  • *The above values are not specifications and cannot be guaranteed.
