1 MIL KAPTON® POLYIMIDE FILM P-221
Description
Read More
Read Less

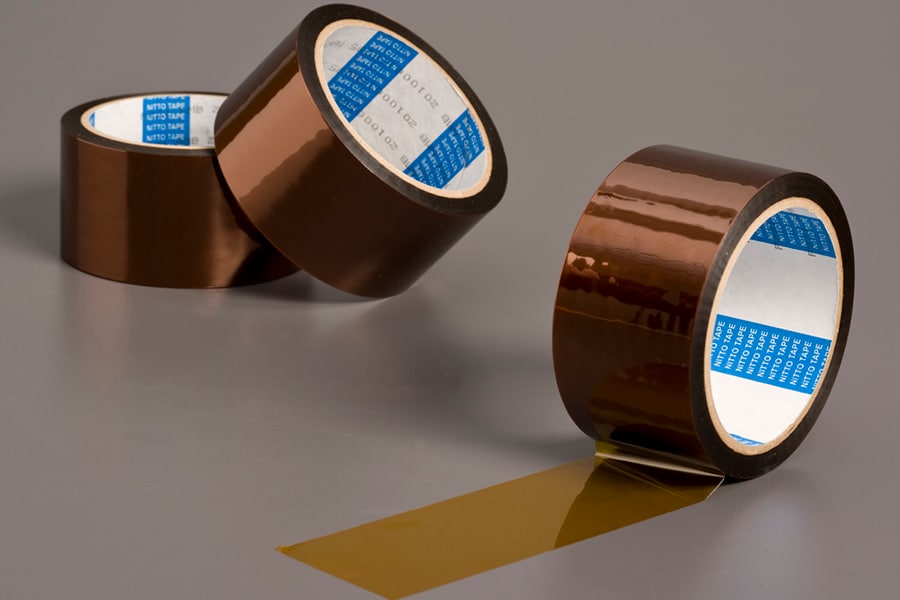

1 MIL KAPTON® POLYIMIDE FILM
The ultimate in electrical insulation tape, our P-221 AMB. Thin and highly conformable, with outstanding puncture, tear and abrasion resistance at elevated temperatures. An ideal high performance tape for tabbing and holding Lithium Ion Battery Cells. Also used for wave solder and solder reflow in electrical markets.
Features
- Offers superior electrical insulation.
- Offers superior dimension stability.
- Offers superior heat resistance (Normal service temperature is 160°C).
- Narrow width processing is available.
- Available in long lengths.
Structure
Properties
| BACKING MATERIAL | 1-MIL Kapton® Polyimide Film |
|---|---|
| ADHESIVE | Silicone, Cured |
| COLOR | Amber |
| INSULATION CLASS UL | 356°F -180°C |
| INSULATION CLASS CSA | 356°F - 180°C |
| BOEING SPECIFICATIONS | BAC 5241 |
| GOVERNMENT SPECIFICATIONS | ASTM D5213 TYPE 1, CLASS A (Replaces obsolete MIL-P-46112B) |
| IMPERIAL | METRIC |
| TOTAL TAPE THICKNESS | 2.6 mils | 0.066 mm |
|---|---|---|
| TENSILE STRENGTH | 36 lbs/in | 63 N/10mm |
| ELONGATION | 85% | 85% |
| ADHESION TO STEEL | 24 oz/in | 2.7 N/10mm |
| DIELECTRIC STRENGTH | 7,500 volts | 7.5 kV |
