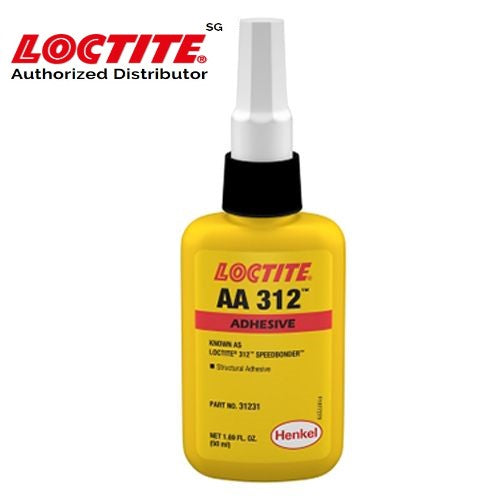

Loctite AA 312 One-part Acrylic Adhesive 50ml

Loctite AA 312 One-part Acrylic Adhesive 50ml

• Full Cure Temperature : 77 °F
• Viscosity : 1000 mPa.s (cP) Brookfield
• Key Substrates : Ceramic, Glass, Metal
• Color : Amber, Clear
• Curing Type : Anaerobic with activator
• Application : Bonding



LOCTITE® AA 312 is a clear, amber, modified acrylic ester adhesive liquid typical applications include bonding dissimilar materials such as metals, glass or ceramics and where fast fixturing is required between close fitting parts. The product cures when confined between close fitting parts with the aid of Activator 736.

• Bonds dissimilar materials such as metals, glass or ceramics
• Used where fast fixturing is required between close fitting parts


LOCTITE® AA 312™ typical applications include bonding
dissimilar materials such as metals, glass or ceramics and
where fast fixturing is required between close fitting parts. The
product cures when confined between close fitting parts with
the aid of Activator 736™ or 734

TYPICAL CURING PERFORMANCE

Cure Speed vs. Substrate

The rate of cure will depend on the substrate used. The graph
below shows the shear strength developed with time on grit
blasted steel lap shears and tested according to ISO 4587.
(Activator 736™ or 734™ applied to one surface).

Cure Speed vs. Bond Gap

Performance of this adhesive is adversly affected by increased
gap and therefore is not recommended in such applications.

GENERAL INFORMATION

This product is not recommended for use in pure oxygen
and/or oxygen rich systems and should not be selected as
a sealant for chlorine or other strong oxidizing materials
For safe handling information on this product, consult the
Material Safety Data Sheet (MSDS).
Where aqueous washing systems are used to clean the
surfaces before bonding, it is important to check for
compatibility of the washing solution with the adhesive. In
some cases these aqueous washes can affect the cure and
performance of the adhesive.
This product is not normally recommended for use on plastics
(particularly thermoplastic materials where stress cracking of
the plastic could result). Users are recommended to confirm
compatibility of the product with such substrates.

Directions for use:

1. For best performance bond surfaces should be clean and
   free from grease.
2. To ensure a fast and reliable cure, Activator 736™ or
   734™ should be applied to one of the bond surfaces and
   the adhesive to the other surface. Parts should be
   assembled within 15 minutes.
3. Where bond gaps are large (up to a maximum of 0.125
   mm (0.005")), or faster cure speed is required, Activator
   736™ or 734™ should be applied to both surfaces. Parts
   should be assembled immediately (within 1 minute).
4. Excess adhesive can be wiped away with organic solvent.
5. Bond should be held clamped until adhesive has fixtured.
6. Product should be allowed to develop full strength before
   subjecting to any service loads (typically 24 to 72 hours after assembly, depending on bond gap, materials and
   ambient conditions).

Loctite Material Specification

LMS dated November -4, 2002. Test reports for each batch
are available for the indicated properties. LMS test reports
include selected QC test parameters considered appropriate to
specifications for customer use. Additionally, comprehensive
controls are in place to assure product quality and
consistency. Special customer specification requirements may
be coordinated through Henkel Quality.

Storage

Store product in the unopened container in a dry location.
Storage information may be indicated on the product container
labeling.
Optimal Storage: 8 °C to 21 °C. Storage below 8 °C or
greater than 28 °C can adversely affect product properties.
Material removed from containers may be contaminated during
use. Do not return product to the original container. Henkel
Corporation cannot assume responsibility for product which
has been contaminated or stored under conditions other than
those previously indicated. If additional information is required,
please contact your local Technical Service Center or
Customer Service Representative.
