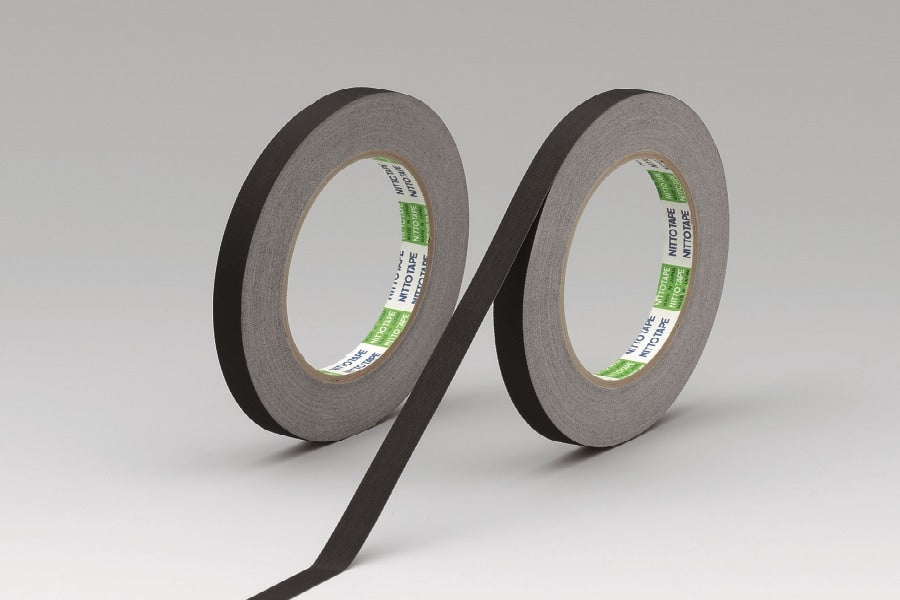

Acetate-Based Adhesive Tape For Electric Insulation, With Excellent Flexibility No.5/No.5EG/No.153/No.155/No.156A
Description
Read More
Read Less
Electric insulation tape made of acetate cloth, coated with acrylic and rubber adhesives.
No. 151UL is UL certified flame-retardant adhesive tape. It is used for insulating electrical and electronic devices, insulating/protecting/bundling wire harnesses, etc.
Features
- Excellent workability.
- Excellent flexibility makes it ideal for bundling irregularly shaped electrical cables.
- Excellent anti-corrosion properties.
- Low VOC makes this an eco-friendly tape. (No.5EG)
- An eco-friendly tape with no halogen. (No.151UL)
Structure
Properties
| Product No. | No.5 | No.5EG | No.153 | No.155 | No.156A | |
| Thickness [mm] |
Entire product | 0.23 | 0.23 | 0.21 | 0.23 | 0.25 |
| Base material | 0.18 | 0.18 | 0.18 | 0.18 | 0.18 | |
| Standard length [m] | 30 | 20 | 50 | 30 | 30 | |
| Color | White Black | Black | White Black | Black | White Black | |
| Peeling strength [N/19mm] | 5 | 6 | 10 | 8 | 8 | |
| Tensile strength [N/19mm] | 120 | 120 | 120 | 130 | 130 | |
| Elongation [%] | 20 | 20 | 20 | 20 | 20 | |
| Breakdown voltage [kV] | 3 | 3 | 1.5 | 3 | 2 | |
[Remarks]
- * UL510 Flame Retardant 130℃ E34833
- * Measurements provided here are measurement value examples and are not guaranteed.
Applications
- For outer insulation and prevention of winding in coils.
- For bundling household appliance wire harnesses (No. 151UL)
